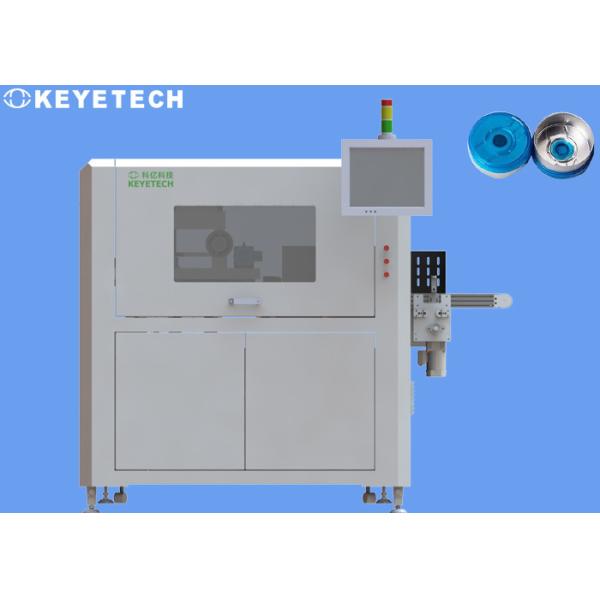

Visualizer Optical Inspection System for Plastic Bottles 360 Degree Detection
Inspection Object
As a medical bottle cap, the aluminum-plastic combination cap has a
variety of specifications and is easy to open. It is widely used in
medicine. In the sealing of bottled liquids such as antibiotics,
injections, oral liquids, and infusions, the aluminum-plastic
combination bottle cap also exerts its unique characteristics.
Superiority. The aluminum-plastic composite cover has simple
structure, low cost, good airtightness, and is more convenient to
use. Aluminum-plastic composite caps have many advantages, such as
stable torsion, which can reduce the opening time; strong
resistance to tension and corrosion resistance, and these are the
reasons why aluminum-plastic composite caps are widely used as
medical bottle caps.
The pharmaceutical industry has always been the object of attention
by most groups. Therefore, the testing of pharmaceutical packaging
must be particularly strict. Keyi Technology has provided advanced
technology for packaging testing in many pharmaceutical industries,
and has also extensively matured testing. Share the system with
more manufacturers who need testing equipment.
Inspection Standard
| Model | Number of camera | Inspection scope | Inspection content | Detection precision | Accuracy | Capacity |
| 1 set | Concave area | Black spot,stains (color different) | ≥0.2mm | Qualified more than 96% | 300 Pcs/mins |
Wrong detecting rate less than 1% | ||||||
| 1 set | Top area | Black spot,stains (color different) | ≥0.2mm | Qualified more than 96% | ||
Wrong detecting rate less than 1% | ||||||
4 set | Side area | Black spot,stains (color different) | ≥0.2mm | Qualified more than 96% | ||
Wrong detecting rate less than 1% | ||||||
Printing missing | ≥1.0mm | Qualified more than 96.5% | ||||
Wrong detecting rate less than 1% | ||||||
Injection incomplete | ≥0.5mm | Qualified more than 98% | ||||
Wrong detecting rate less than 0.8% | ||||||
Sealing not good | ≥1.0mm | Qualified more than 95% | ||||
| Wrong detecting rate less than 1% | ||||||
|
| Black spot, stains (color different) | ≥0.2mm | Qualified more than 96% | ||
Wrong detecting rate less than 1% | ||||||
Incomplete | ≥0.5mm | Qualified more than 98% | ||||
Wrong detecting rate less than 0.8% |
Remark:
1. The grayscale contrast difference value of black spots and dirt
defects must be greater than 40 to be effectively detected
2. The material needs to remain stable
3. Dust and other external factors will affect the algorithm
detection, so maintain a dust-free environment
5. There is a blind spot in the bottle thread, and the bottle body
and the inner wall of the bottle mouth cannot be detected
6. The lack of material, cracks, and flash detection are clearly
visible to the human eye
7. The bottom of the bottle may be blocked by the rough edges of
the bottle mouth when shooting, resulting in a blind spot on the
bottom of the bottle
