| Brand Name : | KEYE |
| Model Number : | KY-PC |
| Certification : | CE/ISO 9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Delivery Time : | 4 to 6 weeks |
| Supply Ability : | 2000 set per year |

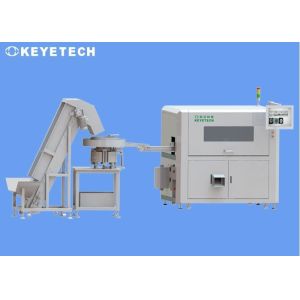

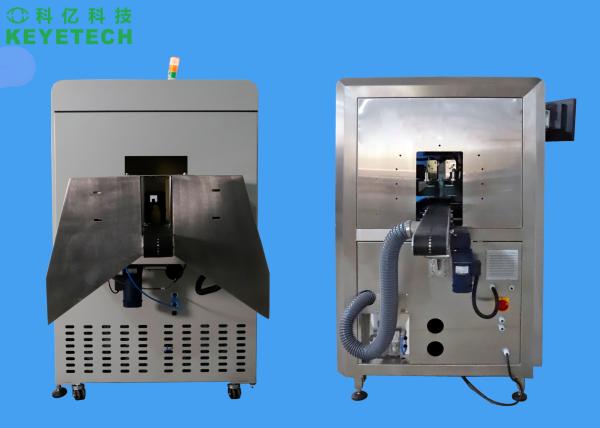

Optical Inspection Machine for Helicap Base Part with Online Rejection Functions
Inspection Theory

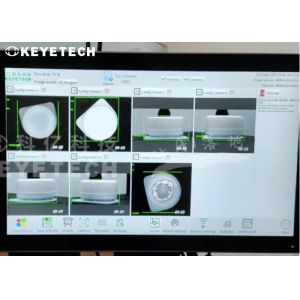

The product is stably and orderly transmitted to a specific workstation through a material handling (feeding) device, and the high pixel sample images captured are transmitted to image processing software through customized LED light sources and HID industrial cameras. Based on big data, AI algorithms are analyzed and compared, and the system automatically determines defective and good products. The corresponding pneumatic components are controlled to eliminate defective products online, and the good products are counted and boxed to complete product inspection.
The software will open up sample comparison standards, and production personnel at the customer's site can control the comparison accuracy, select the most suitable accuracy standard for their own production situation, and thus control the defect rate.
Layout Drawings
| Station | Inspection Area |
| Station1 | 1 camera for top of inner ring defect |
| Station2 | 4 cameras for sidewall of inner ring defect |
| Station3 (optional) | 1 camera for bottom of inner ring defect |
Main Operation Parameters:
| Power | 5.0-6.0Kw | Voltage/Current | 220V/20A 60HZ |
| Ambient Temperature | -20℃ ~ 60℃ | Ambient Humidity | Less than 50% |
| System Language | Chinese/English | Mechanical Structure | Carbon Steel or stainless steel |
| Total Weight | About 350Kg (without glass turntable) | Dimension | 1935*1145*1785mm (without glass turntable) |
**The above parameters are for reference only
Delivery Time
The production cycle of the whole machine is expected to take 9-10 weeks. If additional inspection requirements are added or more adjustment needed, the time will be appropriately extended accordingly. After the equipment arrives at the customer's site, our company arranges after-sales personnel to complete installation and adjustment at the customer's site.
After Sales Service
The seller should complete the creation and debugging of the product basic algorithm model before the equipment is shipped, also provide remote assistance after the equipment arrives at the customer site; and provide buyer with the factory data and operation manual of equipment.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services. If you need to upgrade inspection algorithm, provide operational assistance, etc.
Our company have regular offline training plan every year, so domestic and foreign clients can send their engineers to participate (at their own expense). Those who pass the exam can obtain an industry functional skills certificate.
|
|
